Common issues found with heating oil tanks

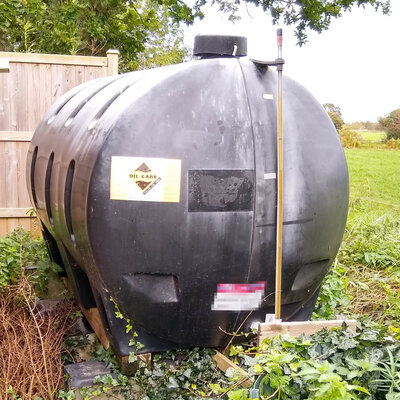

A poorly installed tank with multiple issues

The above pictured tank has several problems. Its base is supported by wood instead of concrete, it is a single-skin type and is installed next to a wood shed with no fireproofing, and it has suffered sun bleaching which makes it brittle and liable to cracking.

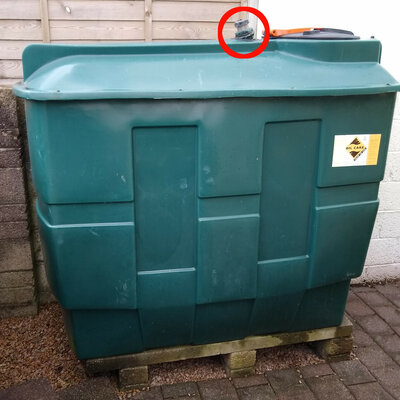

Classic tell tale signs that water has entered the bund of a tank

The tanks pictured above and below show classic signs of water damage. Over time, water may leak into the bund wall ('bunding' is the outer containing wall) which causes further damage when the water pushes the inner tank upward.

This breaks the outlet seal and allows oil and water to mix, which presents further problems. The tank is then beyond repair.

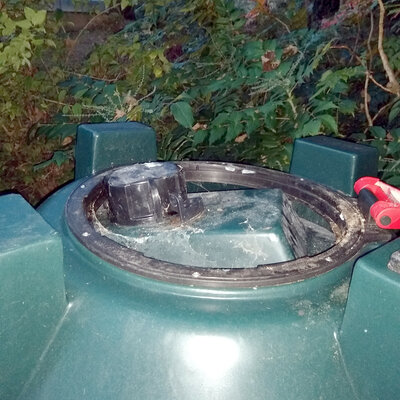

Signs the inner tank has shifted its position

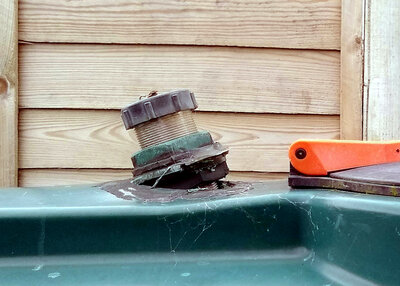

Close-up of a damaged fill point due to water ingress
Bulging side wall due to inner tank leakage
Check the outer walls of your tank are vertical, and not starting to bulge as shown above. Bulging tank walls are a sure sign that your tank requires servicing before it fails.

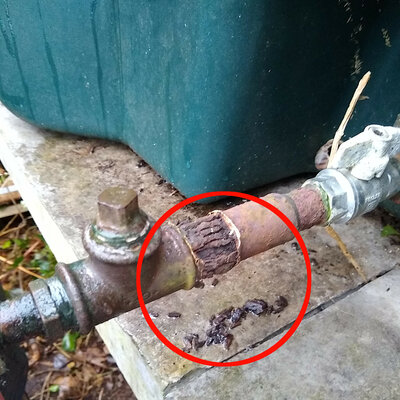

A oil tank outlet fitting requiring replacement

Tank Replacements

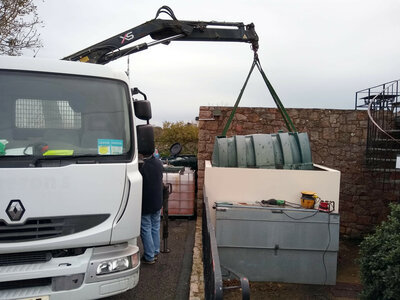

Removing a sun bleached tank prior to replacement

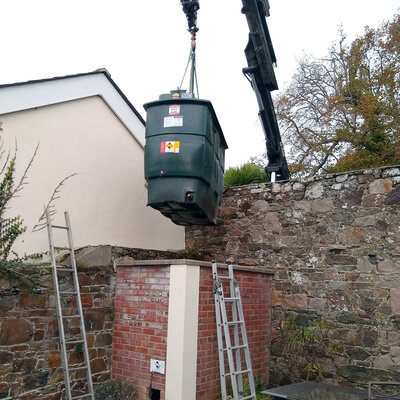

A faulty tank being removed by us prior to fitting a new one

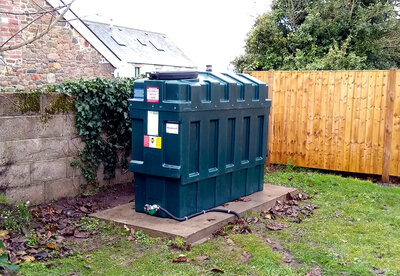

A newly installed tank

Above, an oil tank installed to current regulations allowing sufficient clearance from the boundary and fence so not to require fire protection.

The tank sits on a purpose built concrete slab with 300mm clearance all round. A paper oil filter has been fitted and the oil line has been sleeved.
